Vehicle |
| Number of Passenger Doors |
3 |
| Rear Door Type |
Dual swing-out |
|
Mesin & Performa |
| Engine Order Code |
MG5 |
| Engine Type |
Turbocharged Diesel V6 |
| Displacement |
3.0L/182 |
| Fuel System |
Direct |
| SAE Net Horsepower @ RPM |
188 @ 3800 |
| SAE Net Torque @ RPM |
325 @ 1400-2400 |
| Engine Oil Cooler |
|
|
Transmission |
| Drivetrain |
Rear Wheel Drive |
| Trans Order Code |
G40 |
| Trans Type |
5 |
| Trans Description Cont. |
Automatic |
| Trans Description Cont. Again |
|
| First Gear Ratio (:1) |
3.60 |
| Second Gear Ratio (:1) |
2.19 |
| Third Gear Ratio (:1) |
1.41 |
| Fourth Gear Ratio (:1) |
1.00 |
| Fifth Gear Ratio (:1) |
0.83 |
| Sixth Gear Ratio (:1) |
|
| Reverse Ratio (:1) |
3.17 |
| Clutch Size (in) |
|
| Trans Power Take Off |
|
| Trans PTO Access |
|
| Transfer Case Model |
|
| Transfer Case Gear Ratio (:1), High |
|
| Transfer Case Gear Ratio (:1), Low |
|
| Transfer Case Power Take Off |
|
|
Mileage |
| Fuel Economy Est-Combined (MPG) |
|
| EPA Fuel Economy Est - City (MPG) |
|
| EPA Fuel Economy Est - Hwy (MPG) |
|
|
Electrical |
| Cold Cranking Amps @ 0° F (Primary) |
- TBD - |
| Cold Cranking Amps @ 0° F (2nd) |
- TBD - |
| Maximum Alternator Capacity (amps) |
220 |
| Maximum Alternator Watts |
- TBD - |
|
Cooling System |
| Total Cooling System Capacity (qts) |
10.8 |
|
Weight Information |
| Gross Axle Wt Rating - Front (lbs) |
4080 |
| Gross Axle Wt Rating - Rear (lbs) |
7720 |
| Curb Weight - Front (lbs) |
3389 |
| Curb Weight - Rear (lbs) |
2773 |
| Gross Vehicle Weight Rating Cap (lbs) |
8550 |
| Gross Combined Wt Rating (lbs) |
13550 |
|
Trailering |
| Dead Weight Hitch - Max Trailer Wt. (lbs) |
5000 |
| Dead Weight Hitch - Max Tongue Wt. (lbs) |
500 |
| Wt Distributing Hitch - Max Trailer Wt. (lbs) |
5000 |
| Wt Distributing Hitch - Max Tongue Wt. (lbs) |
750 |
| Fifth Wheel Hitch - Max Trailer Wt. (lbs) |
|
| Fifth Wheel Hitch - Max Tongue Wt. (lbs) |
|
|
Suspension |
| Suspension Type - Front |
Independent |
| Suspension Type - Rear |
Live axle |
| Spring Capacity - Front (lbs) |
- TBD - |
| Spring Capacity - Rear (lbs) |
- TBD - |
| Axle Type - Front |
|
| Axle Type - Rear |
- TBD - |
| Axle Capacity - Front (lbs) |
|
| Axle Capacity - Rear (lbs) |
- TBD - |
| Axle Ratio (:1) - Front |
|
| Axle Ratio (:1) - Rear |
3.92 |
| Shock Absorber Diameter - Front (mm) |
- TBD - |
| Shock Absorber Diameter - Rear (mm) |
- TBD - |
| Stabilizer Bar Diameter - Front (in) |
- TBD - |
| Stabilizer Bar Diameter - Rear (in) |
- TBD - |
|
Brakes |
| Brake Type |
Pwr |
| Brake ABS System |
4-Wheel |
| Brake ABS System (Second Line) |
|
| Disc - Front (Yes or ) |
Yes |
| Disc - Rear (Yes or ) |
Yes |
| Front Brake Rotor Diam x Thickness (in) |
- TBD - |
| Rear Brake Rotor Diam x Thickness (in) |
- TBD - |
| Drum - Rear (Yes or ) |
|
| Rear Drum Diam x Width (in) |
|
|
Tires |
| Front Tire Order Code |
RH8 |
| Rear Tire Order Code |
RH8 |
| Spare Tire Order Code |
|
| Front Tire Size |
LT245/75R16 |
| Rear Tire Size |
LT245/75R16 |
| Spare Tire Size |
- TBD - |
| Front Tire Capacity (lbs) |
- TBD - |
| Rear Tire Capacity (lbs) |
- TBD - |
| Spare Tire Capacity (lbs) |
- TBD - |
| Revolutions/Mile @ 45 mph - Front |
- TBD - |
| Revolutions/Mile @ 45 mph - Rear |
- TBD - |
| Revolutions/Mile @ 45 mph - Spare |
- TBD - |
|
Wheels |
| Front Wheel Size (in) |
16 x 6.5 |
| Rear Wheel Size (in) |
16 x 6.5 |
| Spare Wheel Size (in) |
16 x 6.5 |
| Front Wheel Material |
Steel |
| Rear Wheel Material |
Steel |
| Spare Wheel Material |
Steel |
|
Steering |
| Steering Type |
Pwr Rack & Pinion |
| Steering Ratio (:1), On Center |
- TBD - |
| Steering Ratio (:1), At Lock |
- TBD - |
| Turning Diameter - Curb to Curb (ft) |
- TBD - |
| Turning Diameter - Wall to Wall (ft) |
54.6 |
|
Frame |
| Frame Type |
|
|
Fuel Tank |
| Fuel Tank Capacity, Approx (gal) |
26.4 |
| Aux Fuel Tank Capacity, Approx (gal) |
|
| Fuel Tank Location |
- TBD - |
| Aux Fuel Tank Location |
|
|
Doors |
| Side Door Type |
Sliding |
|
Exterior Dimensions |
| Wheelbase (in) |
170.3 |
| Length, Overall w/rear bumper (in) |
273.2 |
| Width, Max w/o mirrors (in) |
79.7 |
| Height, Overall (in) |
107.5 |
| Overhang, Front (in) |
39.5 |
| Overhang, Rear w/bumper (in) |
63.6 |
| Ground to Top of Load Floor (in) |
27.4 |
| Ground Clearance, Front (in) |
9.5 |
| Ground Clearance, Rear (in) |
6.9 |
| Rear Door Opening Height (in) |
72.4 |
| Rear Door Opening Width (in) |
61.6 |
| Side Door Opening Height (in) |
71.7 |
| Side Door Opening Width (in) |
51.2 |
| Step Up Height - Front (in) |
- TBD - |
| Step Up Height - Side (in) |
19.9 |
|
Cargo Area Dimensions |
| Cargo Area Length @ Floor to Console (in) |
- TBD - |
| Cargo Area Length @ Floor to Seat 1 (in) |
- TBD - |
| Cargo Area Length @ Floor to Seat 2 (in) |
- TBD - |
| Cargo Area Length @ Floor to Seat 3 (in) |
- TBD - |
| Cargo Area Length @ Floor to Seat 4 (in) |
|
| Cargo Area Width @ Beltline (in) |
70.1 |
| Cargo Box Width @ Wheelhousings (in) |
53.1 |
| Cargo Box (Area) Height (in) |
76.4 |
| Cargo Volume to Seat 1 (ft³) |
|
| Cargo Volume to Seat 2 (ft³) |
- TBD - |
| Cargo Volume to Seat 3 (ft³) |
- TBD - |
| Cargo Volume to Seat 4 (ft³) |
187.2 |
|
Interior & Kenyamanan |
| Passenger Capacity |
12 |
| Front Head Room (in) |
- TBD - |
| Front Leg Room (in) |
- TBD - |
| Front Shoulder Room (in) |
- TBD - |
| Front Hip Room (in) |
- TBD - |
| Second Head Room (in) |
- TBD - |
| Second Leg Room (in) |
- TBD - |
| Second Shoulder Room (in) |
- TBD - |
| Second Hip Room (in) |
- TBD - |
| Third Head Room (in) |
- TBD - |
| Third Leg Room (in) |
- TBD - |
| Third Shoulder Room (in) |
- TBD - |
| Third Hip Room (in) |
- TBD - |
| Fourth Head Room (in) |
- TBD - |
| Fourth Leg Room (in) |
- TBD - |
| Fourth Shoulder Room (in) |
- TBD - |
| Fourth Hip Room (in) |
- TBD - |
|
Summary |
| Vehicle Name |

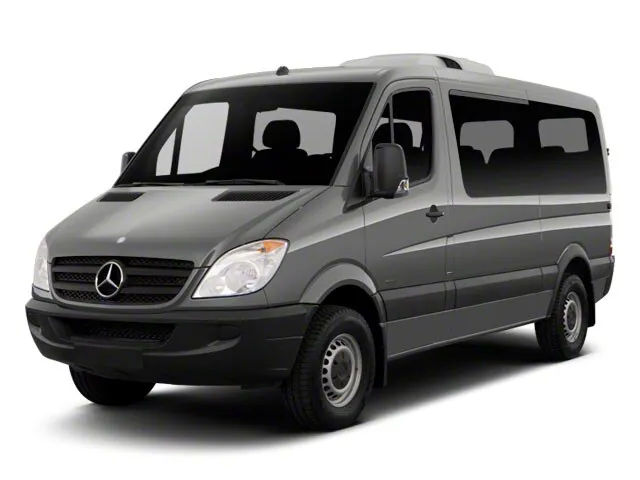

Mercedes-Benz Sprinter Passenger Vans |
| Body Style |
Passenger Van |
| Body Code |
170 |
|
Emissions |
| EPA Greenhouse Gas Score |
|
| Tons/yr of CO2 Emissions @ 15K mi/year |
|
